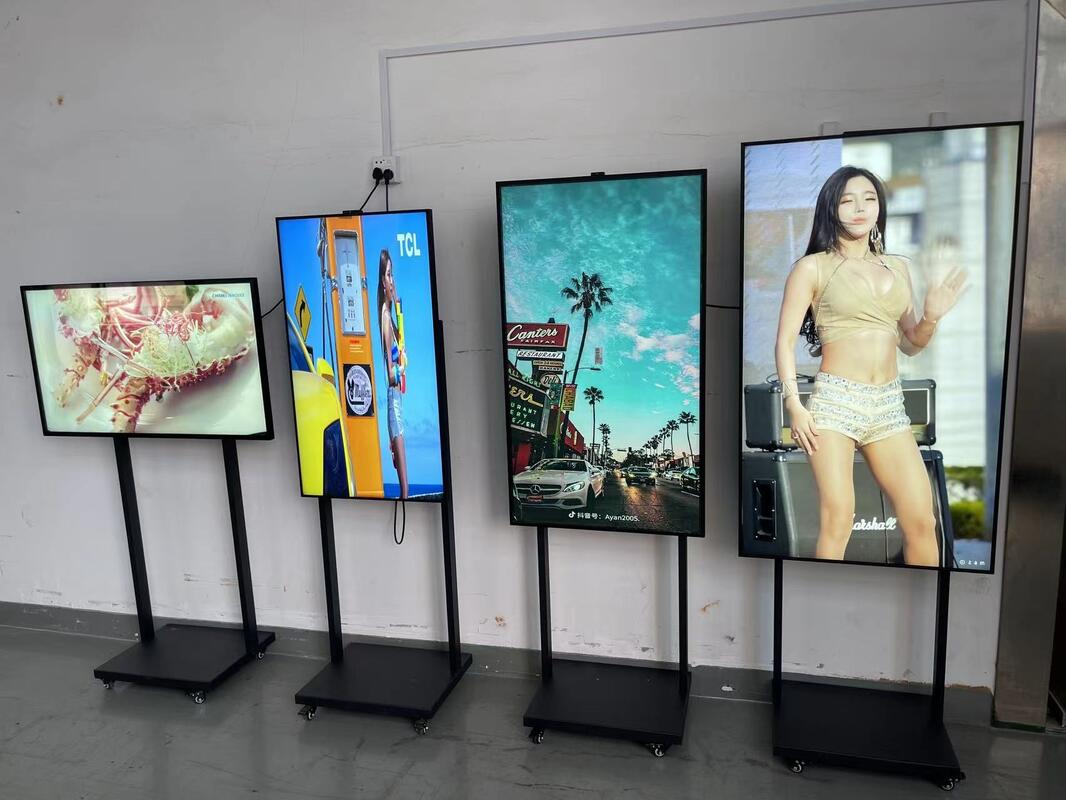

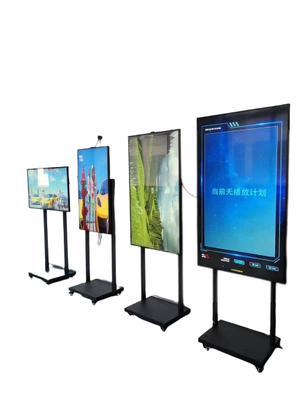

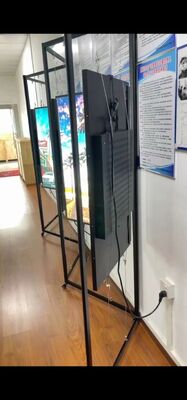

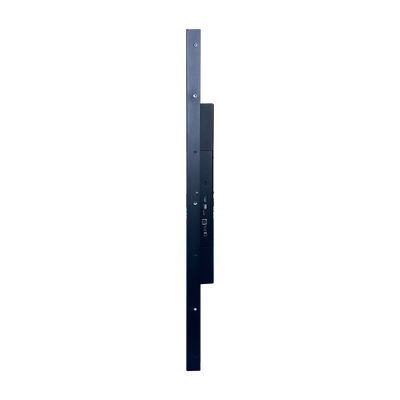

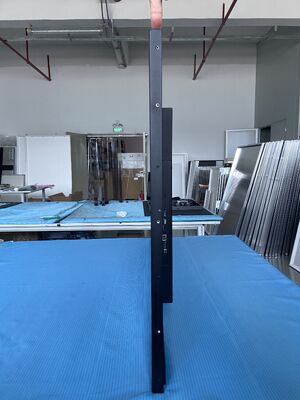

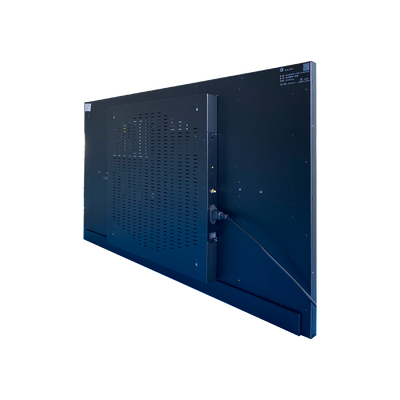

JCVISION 43inch Semi-outdoor High brightness display（single side or double side)
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | JCVISION |
| 証明: | CE/ROHS |
| 書類: | JCVISION 43inch Semi-outdoo...) .pdf |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 受渡し時間: | 10日間 |
| 支払条件: | TT |
|
詳細情報 |
|||
| 応答時間: | 6ms、8ms、5ms、14（標準）（Tr+Td）、6.5ms | タイプ: | TFT、LCD ディスプレイ、屋外広告 Lcd ディスプレイ スクリーン テレビ デジタル サイネージ キオスク |
|---|---|---|---|
| 輝度: | 2000cd/m2,450cd/m2,2000nits,1500/m2,500cd/m2 | 応用: | 屋外,屋内,ホテル,空港,展覧会 |
| 入力電圧: | AC100～240V 50/60HZ、AC110V～240V、50/60Hz、320W、AC100～240V 50-60HZ | 視野角: | 178 /178,89/89/89/89,178°/178°,178°V /178°H,89°/89°89°/89°(代表値) |
| ピクセルピッチ: | 0.4845(H)×0.4845(V)、0.4845mm、0.831(H)×0.831(V)、0.08275×0.24825、0.0817(H)×0.2451(V)mm | 保証: | 1年、1年、2年、3年、12ヶ月 |
| 色: | 16.7M、ブラック/シルバー/ホワイト、またはオプション、カラー、ブラック | パネルサイズ: | 42 インチ、カスタマイズされた、55 インチ、65 インチ、230x105x35mm |
| 最大解像度: | 1920*1080、1920(RGB)*1080(FHD)、1080P、3840*2160 | 製品名: | 55 インチ高輝度屋外デジタル サイネージ広告ディスプレイ、22 インチ ファンレス パネル PC コンピュータ、65 インチ大型屋外デジタル サイネージ、広告ディスプレイ、屋外広告スクリーン デジタ |
| 提供されるアフターサービス: | ビデオテクニカルサポート、オンラインサポート、無料スペアパーツ、現場設置、試運転およびトレーニング | CPU: | 2GHz、A83T、オクタコア、ARM A17 クアッド 2.0GHz、デュアルコア |
| タッチスクリーン: | マルチポイントフォイルタッチ、10ポイント静電容量式/IRタッチ、タッチフォイル(オプション)、IRタッチ(静電容量式/SAWタッチオプション)、オプション | 材料: | 金属ケース + 強化ガラスパネル、冷間圧延鋼、金属ケース + 強化ガラス、1.2-1.5 mm 金属プレート |
| インストール: | 床置き、床置きまたはカスタマイズされた | サイズ: | 42~65インチ、65インチ、65インチ (他のサイズも利用可能)、50インチ、17-84インチ オプション |
| オペレーティング·システム: | Android 5.1、Android 4.4、X86 Windows7、CF/SD/USB、Android（Windowsはオプション） | ||
| ハイライト: | 43inch semi-outdoor digital signage display,high brightness outdoor display screen,double-sided outdoor digital signage |
||
製品の説明
JCVISION Technology Inc
43inch Semi-outdoor High brightness display
Features
u AppearanceAdopting an industrial-grade structural design concept, it features a one-piece molded frame, a slim and aesthetically pleasing body, simple installation and convenient maintenance, and a unique heat dissipation technology that supports 24/7 operation.
u High Definition: Utilizes an IPS high-definition LCD panel, featuring vibrant colors, high brightness, and supports up to 2160P video and image decoding playback, achieving high-quality image output.
u intelligent:Equipped with an intelligent input and display system, it features a wide range of mainstream ports, powerful audio and video decoding capabilities, automatic signal recognition, simple operation, and meets diverse usage needs.
u Scenarios: Supports horizontal/vertical installation, applicable to a wide range of scenarios, and is widely favored by government, education, finance, transportation, hotels, supermarkets, exhibition halls, medical, catering, and other industries.
u High-end: Combining numerous advantages such as aesthetics, high definition, explosion-proof, ease of use, commercial application, and intelligence, it is a high-end commercial display terminal device favored by many industries.
|
Trade Condition |
|
|||
|
Model No. |
JC-OW-S43A-NT |
|
||
|
Display parameters |
|
|||
|
LCD Grade |
New A+ LCD display panel |
|
||
|
Panel size |
43 inches |
|
||
|
resolution |
1920*1080 |
|
||
|
Viewing angle |
89/89/89/89 |
|
||
|
Display area |
940.896*529.254mm (H×V) |
|
||
|
Display ratio |
16:9 |
|
||
|
Backlight type |
E-LDE |
|
||
|
Screen brightness |
Single side 700nits/1000-3000NITS (option) Double side normally window side 2500 nits, indoor side 700 nits(potion) |
|
||
|
refresh rate |
60Hz |
|
||
|
Surface treatment |
Matte finish (Haze 1%) |
|
||
|
Supported colors |
16.7M (8-bit) |
|
||
|
Fuselage parameters |
|
|||
|
Available colors |
black |
|
||
|
Border material |
Aluminum profiles |
|
||
|
Body material |
Cold-rolled steel sheet for hardware (metal spraying) |
|
||
|
Border size |
5mm |
|
||
|
Body size |
953.5*544.5*59.5mm (excluding wall mount) |
|
||
|
Packaging size |
1080*150*677mm |
|
||
|
Wall mount bracket |
Horizontal/Vertical Universal Version |
|
||
|
Hanging hole spacing |
400*400 |
|
||
|
Packaging material |
Neutral thickened cardboard box |
|
||
|
net weight |
11.2KG |
|
||
|
Gross weight |
13.9KG |
|
||
|
Installation method |
Wall-mounted/Embedded/Hanging/Floor-mounted |
|
||
|
Display System (optional) |
|
|||
|
Motherboard |
Display Solution |
|
||
|
Support video |
MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support super HD 2160P video |
|
||
|
Support picture |
JPG/JPEG/ PNG/BMP |
|
||
|
Timer |
Set time on/off auto |
|
||
|
Image rotate |
support 90°,180°,270° image rotate |
|
||
|
Android System (optional) |
|
|||
|
Motherboard |
RK3566/RK3576/RK3588 |
|
||
|
Operating system |
11.0/14.0/13.0 |
|
||
|
Main frequency |
1.8G HZ/2.2HZ/2.4HZ |
|
||
|
Memory |
2G/4G/8G (Optional) |
|
||
|
Storage |
32G/64G/128G(Optional) |
|
||
|
Input/output |
RJ45,HDMI out,USB*2,audio,TFcard, and option for HDMI IN |
|
||
|
Windows System (optional) |
|
|
||
|
Cpu |
I5 10th Gen/I5/I7 (optional) |
|
|
|
|
Operating system |
Win10/ Win11 |
|
|
|
|
Memory |
4G/8G/16G (Optional) |
|
|
|
|
Storage |
128/256G /512G/1T SSD (Optional) |
|
|
|
|
Input/output |
RJ45,HDMI out,USB2.0,USB3.0,audio |
|
|
|
|
System Functions |
|
|
||
|
Language selection |
Supports English, Chinese, and multiple languages. |
|
||
|
Video Decoding |
Highest support2160PVideo and image decoding and playback |
|
||
|
Power-on method |
Automatic start upon power-on, remote control on/off |
|
||
|
Signal recognition |
Automatically identify signal input source |
|
||
|
hibernation function |
Automatically enters sleep mode when no signal input. |
|
||
|
Idle animation |
Customizable standby screen |
|
||
|
Boot screen |
Customizable boot timeLOGO |
|
||
|
Remote control function |
Supports remote control operation |
|
||
|
USBFunction |
upgrade/Multimedia playback |
|
|
|
|
Audio function |
Built-in two high-quality tweeters |
|
|
|
|
screen rotation |
Follow the display orientation of the input host. |
|
|
|
|
Video support |
480P, 480p, 576P, 576p, 720p, 1080P, 1080p, 4Kx2K@60Hz |
|
|
|
|
Electrical performance |
|
|
||
|
Rated voltage |
AC110-220V |
|
|
|
|
standby power |
≤1W |
|
|
|
|
Rated power |
≦167W |
|
|
|
|
Operating temperature |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Storage environment |
Temperature -20℃~70℃/humidity10%RH~90%RH |
|
|
|
|
Dimensions(Show separately) |
|
|
||
